Stahlgruppe hydraulische slangenpers

 • Crimping range:8-63mm

• Quantity of dies: 11sets

（8, 15, 19, 23, 26, 31, 36, 41, 47, 55.63）

• Maximale opening: ≥75 mm

• System pressure: 31.5Mpa

• Crimping force: 500T

• Output volume of pump: 2.5L

• Motor power: 3kw

• Voltage: 220v （380V optional）

• Work efficiency: 200pcs/h

• Dimension: 710mm X510mm X 1210mm

• Weight: 320kg

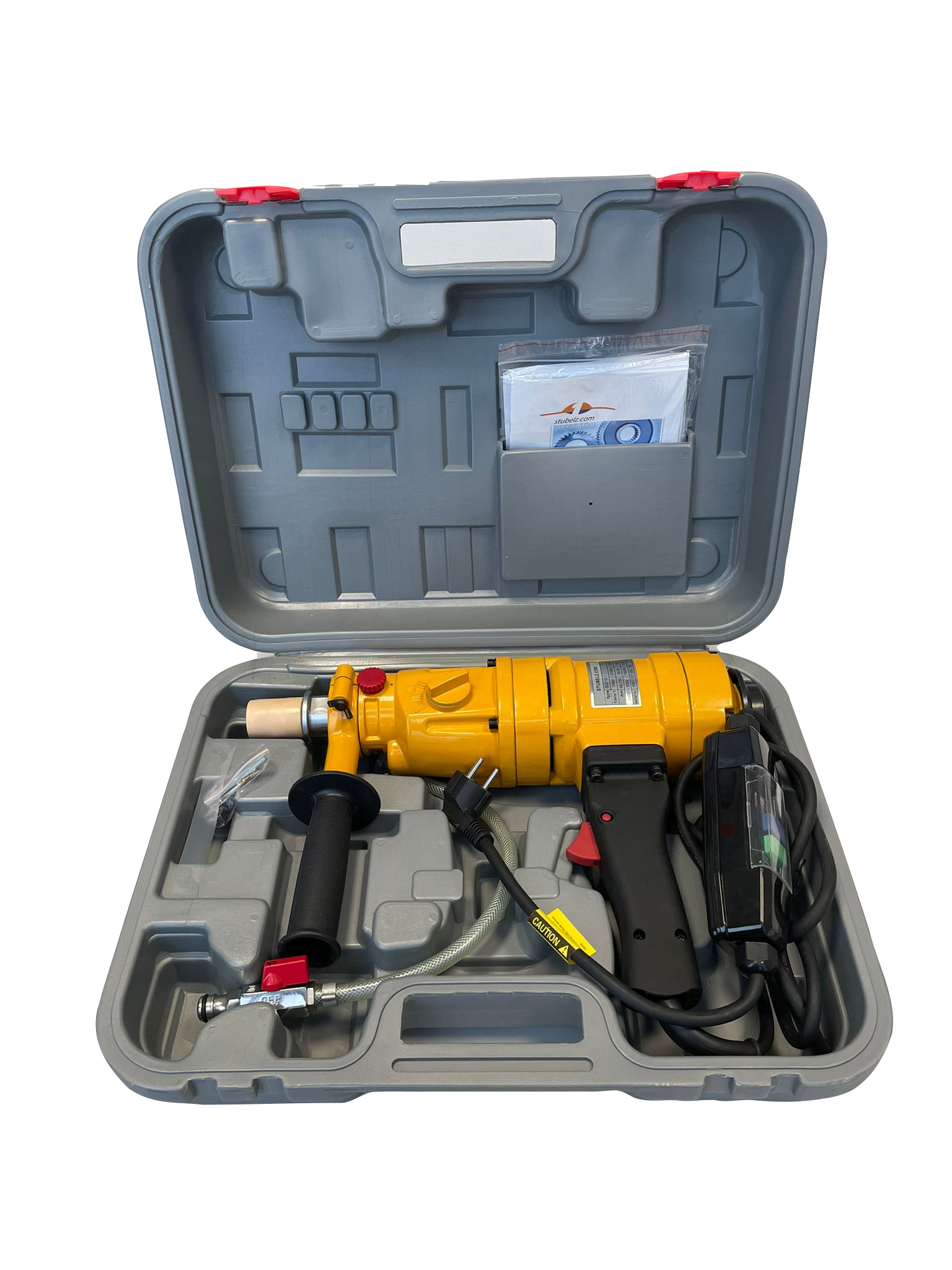

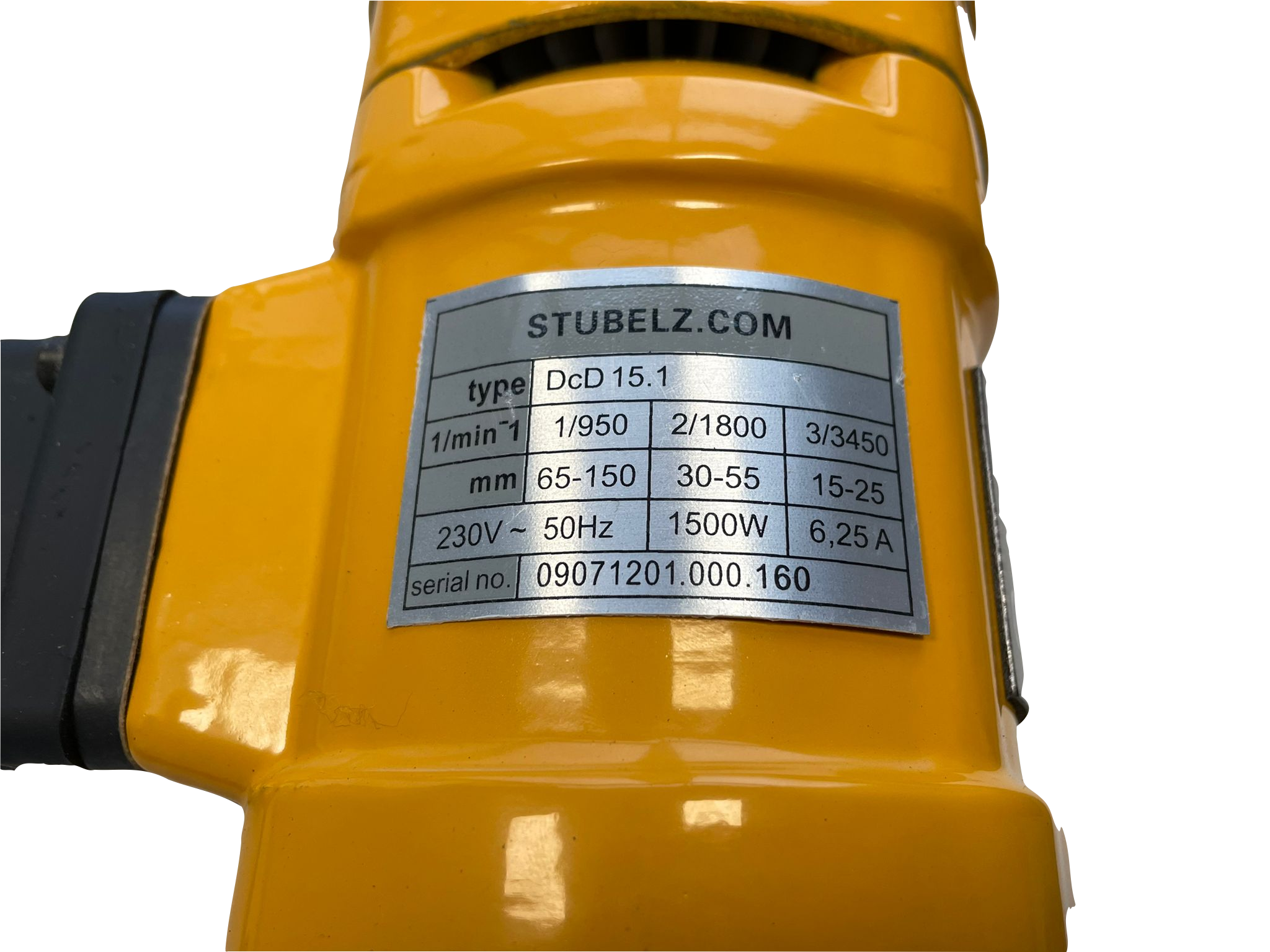

Stubelz Diamant Kernboor DcD 15.1
Overstock Aanbieding

• Nominale spanning 230 V
• Nominale stroom 7,5 A
• Stroom ingang 1500 W
• Frequentie 50-60 Hz
• Toerental (onbelast) 1/min 950/1800/3450
• Boren met statief in beton 15-130 mm
• Boren uit de hand 15-60 mm
• Boren uit de hand (metselwerk) 20-150 mm
• LpA 88,90 dB(A)
• LwA 99,90 dB(A)

Stahlgruppe KK30 Heavy Duty Diesel Generator

• Power Factor: 0,8
• Genset output: 30KVA
• Voltage: 230/400V
• Phase: 3
• Speed: 1500
• Frequency: 50HZ
• Current: 43,3A
• Weight: 670KG

Stahlgruppe KK40 Heavy Duty Diesel Generator

• Power Factor: 0,8
• Genset output: 40KVA
• Voltage: 230/400V
• Phase: 3
• Speed: 1500
• Frequency: 50HZ
• Current: 57,7A
• Weight: 710KG

Stahlgruppe KK60 Heavy Duty Diesel Generator

• Power Factor: 0,8
• Genset output: 60KVA
• Voltage: 230/400V
• Phase: 3
• Speed: 1500
• Frequency: 50HZ
• Current: 86,6A
• Weight: 840KG

Stahlgruppe KK70 Heavy Duty Diesel Generator

• Power Factor: 0,8
• Genset output: 70KVA
• Voltage: 230/400V
• Phase: 3
• Speed: 1500
• Frequency: 50HZ
• Current: 101A
• Weight: 880KG
